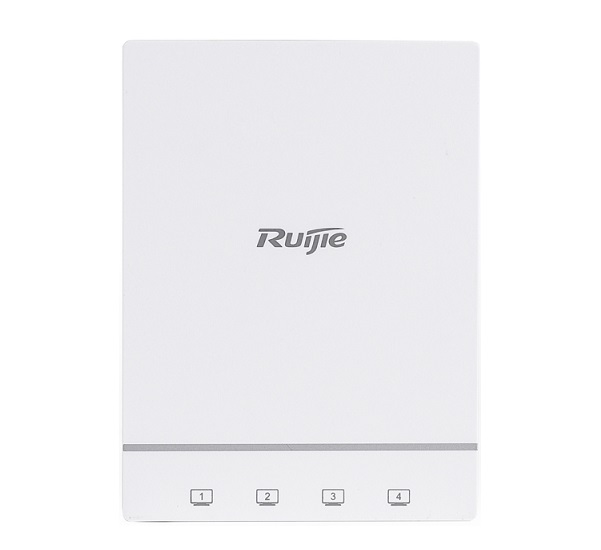

Wireless Access Point RUIJIE RG-AP180

Wireless Access Point RUIJIE RG-AP180

• The 1st Wi-Fi 6 Enterprise Wall Plate Access Point with Wi-Fi 6 Alliance Certification.

• Built-in IoT Module (Built-in Bluetooth 5.0 and Zigbee) for future Smart of Things integration.

• Hidden Status LED Design – never disturbing your customer comfort.

• Universal wall plate design –mount kit option available for US/EU standard socket.

• Guarantee High Definition (HD) IPTV Application – upto 4 HD TV can be connected via the Gigabit LAN ports.

• OFDMA, MU-MIMO and BSS Technology for minimal wireless signal interference.

• AI Wireless Optimization: one-click optimization powered by Ruijie Cloud and WIS technology.

• Hybrid Management: support standalone AP to over thousands of APs with deployment options of appliances, private cloud or public cloud service.

• Mobility Management: Free mobile app available for RG-MACC-Base private cloud or Ruijie Public Cloud customers.

Specifications

Model RG-AP180

Hardware

Radio Dual-radio dual-band: Radio 1: 2.4G 11ax: 2×2 MIMO Radio 2: 5G 11ax: 2x2 MIMO

Protocol Support concurrent 802.11a/n/ac/ax and 802.11b/g/n/ax

Operating Bands 802.11b/g/n/ax: 2.4G ~ 2.483GHz 802.11a/n/ac/ax: 5.150~5.350GHz, 5.47~5.725GHz, 5.725~5.850GHz (vary depending on different countries)

Spatial Streams 4 spatial streams, 2x2 MIMO

Max Throughput Maximum throughput of 2.4G: 574Mbps Maximum throughput of 5G: 1.2Gbps Maximum throughput per AP: 1.775Gbps

Transmit Power ≤100mw (20dBm, radio transmit power only)

Dimensions 116mm 86mm 40mm

Weight 0.37kg

Port 4 10/100/1000Mbps Ethernet ports 1 10/100/1000Mbps uplink port

Power Supply Support PoE Support local power supply (DC)

11ax Feature Support 802.11ax Support MU-MIMO

Management Port 1 Micro USB port (hidden)

Reset Support (hidden)

LED indicator Support (hidden) The indicator can be switched off

Built-in Antenna Built-in low-radiation omnidirectional antenna (antenna gain 3.5dBi)

IoT Protocol Support Bluetooth5.0 (BLE), Zigbee

Power Consumption

IP Rating IP41

Anti-theft Standard: ordinary screws

Color of AP Enclosure White

Environment Operating temperature: 0°C~45°C Storage temperature: -40°C~70°C Operating humidity: 5％~95％ (non-condensing) Storage humidity: 5％~95％ (non-condensing)

MTBF 250,000 hours

Software

WLAN Maximum clients per AP 1024

BSSID capacity 8（recommended to configure a maximum of 5 BSSIDs per radio in actual application）
