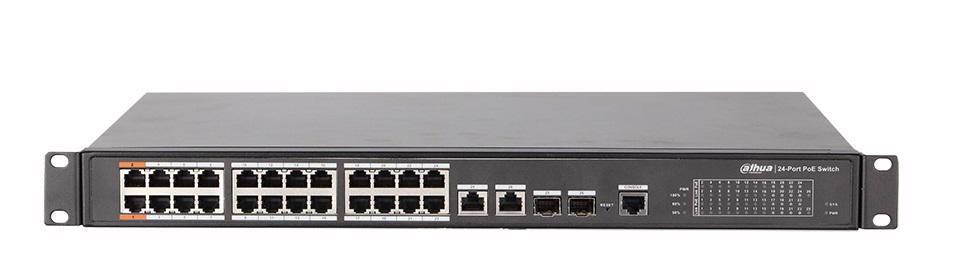

Switch Dahua 24-port 10/100Mbps PoE PFS4226-24ET-240

24 port 10/100Mbps PoE SwitchoE DAHUA PFS4226-24ET-240

-24-Port PoE Switch.

-Layer 2 management PoE switch.

-Cổng giao tiếp: 2 x 10/100/1000 Base-T (Combo port), 2 x 1000 Base-X (Combo port), 24 x 10/100 Base-T (PoE power supply).

-PoE budget: 240W.

-Hỗ trợ PoE, PoE+, Hi-PoE.

-'Orange port' support Hi-PoE, can be used with the PoE extender (PFT1300).

-250 meters long distance PoE transmission.

-PoE management, PoE Setting/Event Statistics/Green PoE.

-Search and upgrade via ConfigTool.

-Support Web management.

-High lightning protection design.

-Non-blocking video transmission.

Đặc tính kỹ thuật

Model DH-PFS4226-24ET-240

Ethernet Port 2 x 10/100/1000 Base-T (Combo port)

2 x 1000 Base-X (Combo port)

24 x 10/100 Base-T (PoE power supply)

PoE Power Consumption Port1/2 support Hi-PoE (60W), PoE+, PoE

Each power ≤30W

Total ≤ 240W

PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE

Switching Capacity 8.8G

Packet Forwarding Rate 6.55Mpps

Humidity 10%~90%

Power 100~240VAC

Lightning Protection Common Mode 4KV

Differential Mode 2V

Working Temperature -10℃~55℃

Weight 3.51kg

Dimension 440 x 300 x 44mm

-Sản xuất tại Trung Quốc.
