Mainboard Gigabyte H370 AORUS Gaming 3

Intel® Optane™ Memory Ready

Công nghê đa card màn hình

• Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

USB Chipset:

• 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header

• 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support

• 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

• 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Kết nối I/O bên trong

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 1 x water cooling CPU fan header

• 2 x system fan headers

• 1 x system fan/water cooling pump header

• 2 x digital LED strip headers

• 2 x digital LED strip power select jumpers

• 2 x RGB (RGBW) LED strip headers

• 6 x SATA 6Gb/s connectors

• 2 x M.2 Socket 3 connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB Type-C™ port, with USB 3.1 Gen 1 support

• 1 x USB 3.1 Gen 1 header

• 1 x USB 2.0/1.1 header

• 1 x serial port header

• 1 x S/PDIF Out header

• 1 x Thunderbolt™ add-in card connector

• 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)

• 1 x Clear CMOS jumper

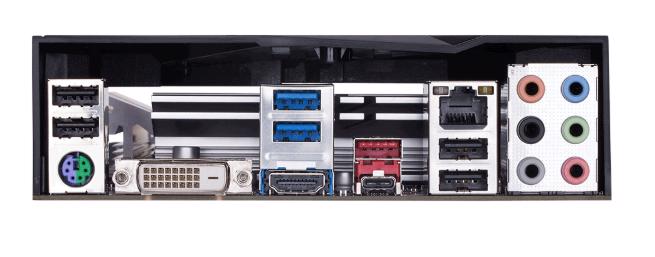

Kết nối bảng phía sau

• 1 x PS/2 keyboard/mouse port

• 4 x USB 2.0/1.1 ports

• 1 x DVI-D port

• 1 x HDMI port

• 1 x USB Type-C™ port, with USB 3.1 Gen 2 support

• 1 x USB 3.1 Gen 2 Type-A port (red)

• 2 x USB 3.1 Gen 1 ports

• 1 x RJ-45 port

• 6 x audio jacks

Điều khiển I/O

• iTE® I/O Controller Chip

Theo dõi phần cứng

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Overheating warning

• Fan fail warning

• Fan speed control
• Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

• 2 x 128 Mbit flash

• Use of licensed AMI UEFI BIOS

• Support for DualBIOS™

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng duy nhất

• Support for APP Center
• Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• 3D OSD
• @BIOS
• AutoGreen
• Cloud Station
• EasyTune
• Easy RAID
• Fast Boot
• Game Boost
• ON/OFF Charge
• Platform Power Management
• RGB Fusion
• Smart Backup
• Smart Keyboard
• Smart TimeLock
• Smart HUD
• System Information Viewer
• USB Blocker
• V-Tuner

• Support for Q-Flash

• Support for Xpress Install

Gói phần mềm

• Norton® Internet Security (OEM version)

• cFosSpeed

Hệ điều hành

• Support for Windows 10 64-bit

Hệ số khuôn

• ATX Form Factor; 30.5cm x 24.4cm

Ghi chú

• Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.

• Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
