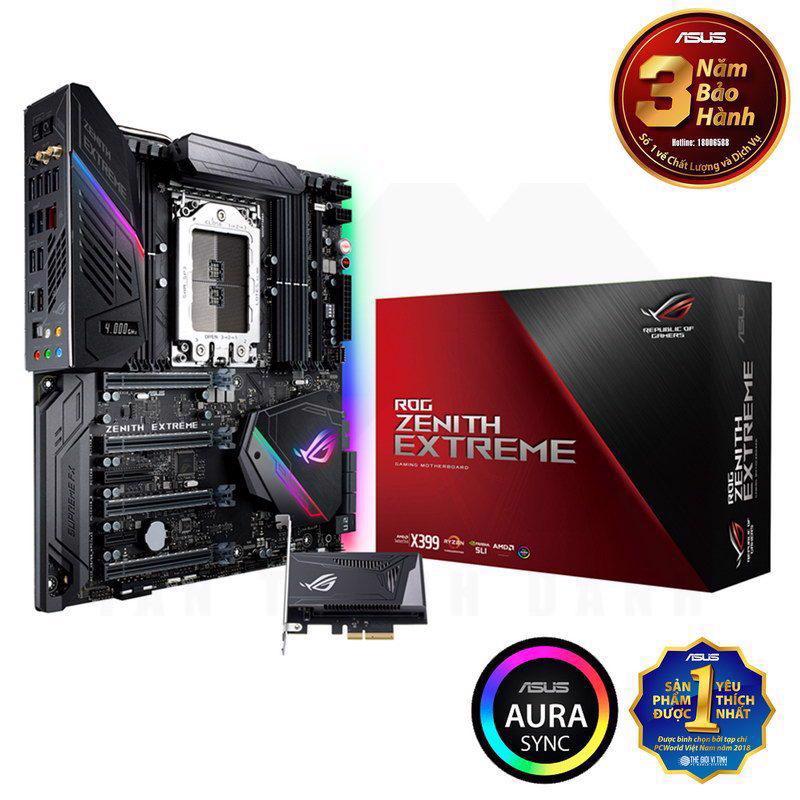

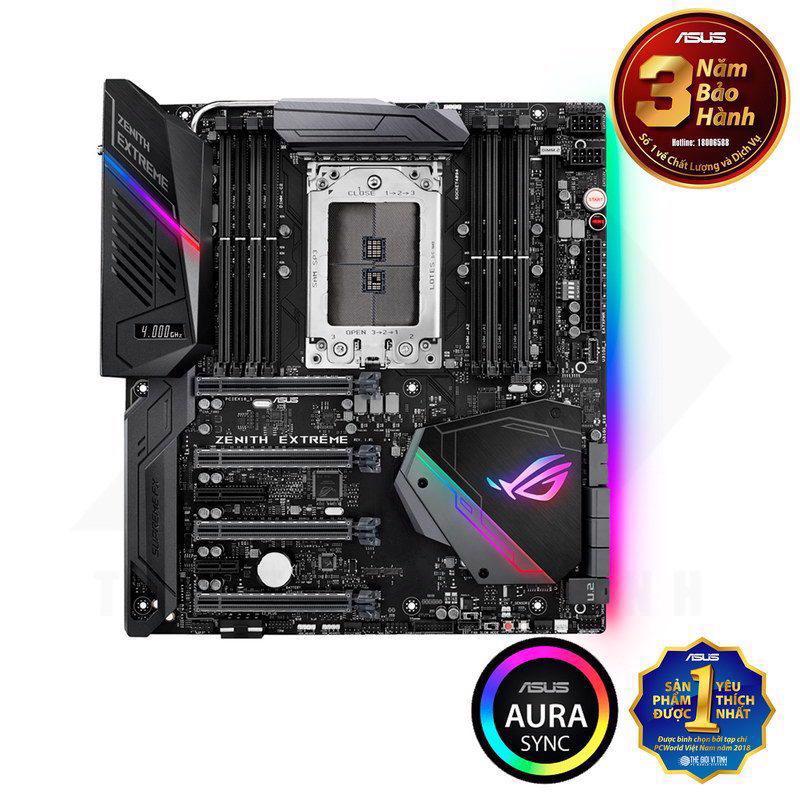

Mainboard Asus X399 ROG Zenith Extreme

CPU AMD SocketTR4 for AMD Ryzen™ Threadripper™ Processors Supports CPU up to 16 cores * Refer to www.asus.com for CPU support list

Chipset AMD X399

Bộ nhớ AMD Ryzen™ Threadripper™ Processors 8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Quad Channel Memory Architecture Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Hỗ trợ multi GPU Supports NVIDIA® 4-Way SLI™ Technology Supports AMD 4-Way CrossFireX Technology

Khe mở rộng AMD Ryzen™ Threadripper™ Processors 4 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8) *1 AMD X399 chipset 1 x PCIe 2.0 x4 1 x PCIe 2.0 x1

Lưu trữ AMD Ryzen™ Threadripper™ Processors : 2 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x U.2 port3 AMD X399 chipset : 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10

LAN Intel® I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst IV

Âm thanh ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output 113 dB SNR recording input – ESS® ESS9018Q2C – Supports up to 32-Bit/192kHz playback *5 Audio Feature : – Optical S/PDIF out port(s) at back panel – Sonic Radar III – Sonic Studio III

Cổng USB AMD Ryzen™ Threadripper™ Processors : 8 x USB 3.1 Gen 1 port(s) (8 at back panel, blue) AMD X399 chipset : 4 x USB 3.1 Gen 1 port(s) (4 at mid-board) AMD X399 chipset : 2 x USB 2.0 port(s) (Type-A + USB Type-CTM, 2 at mid-board) AMD X399 chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) ASMedia® USB 3.1 Gen 2 controller : 2 x USB port(s) (2 at back panel, , Type-A + USB Type-CTM)

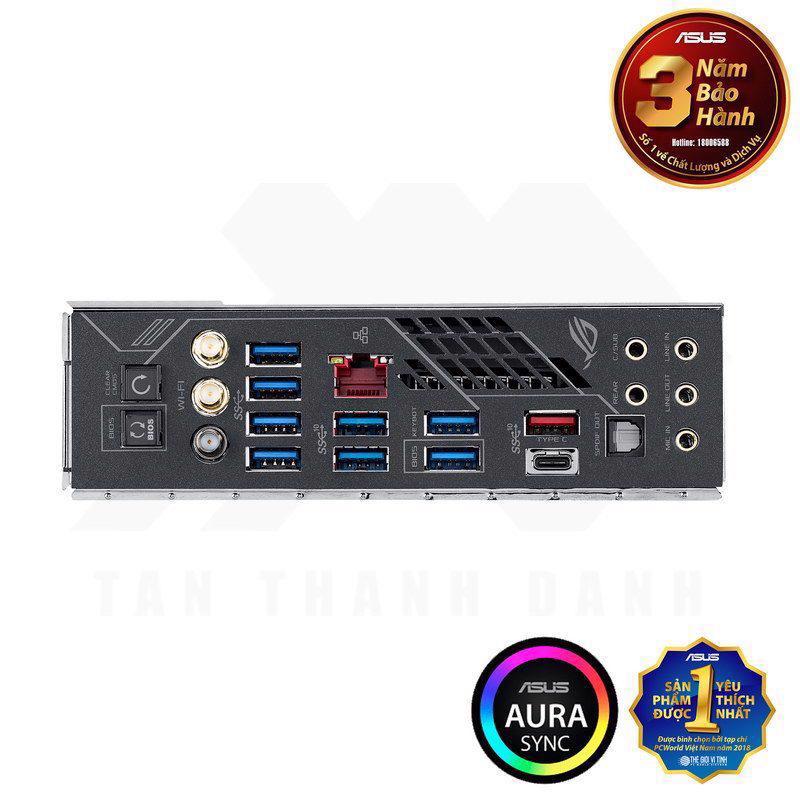

Cồng I/O sau 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 (black)USB Type-CTM 1 x USB 3.1 Gen 2 (red)Type-A 8 x USB 3.1 Gen 1 (blue) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad and Bluetooth v4.1) 5 x LED-illuminated audio jacks 8 x USB 3.1 Gen 1 (blue) 1 x USB 3.1 Gen 2 (red)Type-A 1 x USB 3.1 (black)USB Type-CTM

Cổng I/O trong 1 x Aura Addressable Strip Header(s) 1 x ReTry jumper 1 x Safe Boot jumper 1 x U.2 port 2 x Aura RGB Strip Headers 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x H_AMP fan connector 1 x W_PUMP+ connector 2 x 8-pin EATX 8 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Slow Mode switch(es) 2 x Thermal sensor connector(s) 1 x LN2 Mode header(s) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Reset button(s) 1 x LN2 Mode switch(es) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x U.2 connector*4 1 x Slow Mode jumper(s) 1 x System panel connector 1 x PCIe x16 lane switch 2 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x USB 3.1 Gen 2 front panel connector 1 x PCIe x16 Lane Switch 1 x 9 pin Monoblock sensor
