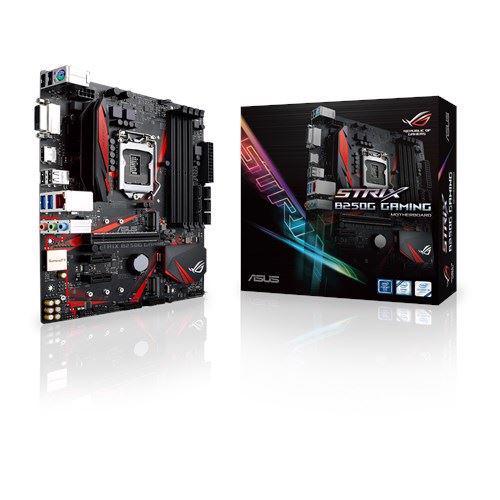

Mainboard Asus STRIX B250G Gaming

###

CPU Build in Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0

Chipset Intel® B250

Bộ nhớ 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

Đồ họa Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Hỗ trợ Multi-GPU không

khe cắm mở rộng 1 x PCIe 3.0/2.0 x1 (x16 mode) 2 x PCIe 3.0/2.0 x1

Lưu trữ Intel® B250 Chipset : 6 x SATA 6Gb/s port(s), Intel® B250 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Intel® Optane™ Memory Ready

LAN Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard

Am thanh SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *1 Audio Feature : - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity

cổng USB Intel® B250 Chipset : 6 x USB 3.0 port(s) (2 at back panel, , 4 at mid-board) Intel® B250 Chipset : 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)

Tính năng đặc biệt Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot GPU Boost ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS MyLogo ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-DIMM Fan Xpert 3
