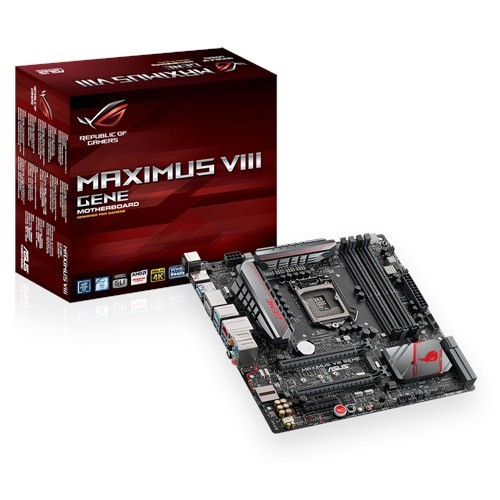

Mainboard Asus Maximus VIII GENE

Hãng sản xuất

ASUS

Chủng loại

Maximus VIII Gene

CPU hỗ trợ

Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

Chipset

Intel® Z170

Bộ nhớ trong

• 4 x DDR4 DIMM support for DDR4 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3500(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 MHz up to 64 GB

• Supports Dual channel mode

• Supports non-ECC, un-buffered memory

• Supports Intel® Extreme Memory Profile (XMP)

VGA onboard

• Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz

• Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Âm thanh

ROG SupremeFX 2015 8-Channel High Definition Audio CODEC

• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

• SupremeFX Shielding Technology

• ESS® ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ -bit)

• TI RC4580 2VRMS audio OP AMP(s)

Mạng

Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology

Anti-surge LANGuard

Khe mở rộng

2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray)

1 x PCIe 3.0 x4 (black) *1

Supports NVIDIA® Quad-GPU SLI™ Technology

Supports AMD Quad-GPU CrossFireX™ Technology

Chuẩn lưu trữ

1 x M.2 Socket 3with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2

2 x SATA Express port, , Compatible with 4 x SATA 6.0 Gb/s ports

6 x SATA 6Gb/s port(s), gray

Support Raid 0, 1, 5, 10

Cổng giao tiếp sau

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

1 x USB 3.1 (black)Type-C

1 x USB 3.1 (red)Type-A

6 x USB 3.0 (blue)

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x Clear CMOS button(s)

1 x USB BIOS Flashback Button(s)

Công nghệ tích hợp

• OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance

• 5-Way Optimization by Dual Intelligent Processors 5

• 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
