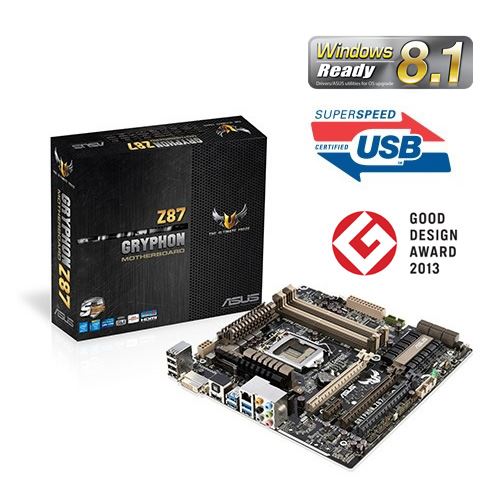

Mainboard Asus Gryphon Z87

Dòng sản phẩm Mainboard Asus Gryphon Z87

Bộ xử lý Intel Core i3/i5/i7 Processors/Pentium Processors/ Celeron Processors Support Intel 22nm CPU Support Intel Turbo Boots Technology 2.0

Socket LGA1150

Chipset Intel Z87 Express

Bộ nhớ 4 x DDR3 DIMM Slots Dual channel DDR3 1333/1600/1866 MHz, up to 32GB Support for Extreme Memory Proflie (XMP)

Đồ họa 1 x HDMI port (4096 x 2160) 1 x DVI-D port (1920 x 1200) Maximum shared memory of 1024 MB

Network 1 x Gigabit LAN Controller (Intel I217V)

Khe cắm mở rộng 2 x PCIe 2.0 x 16 slots 1 x PCIe 3.0 x 16 slots 1 x PCIe 2.0 x 1 slots

Cổng HDD 6 x SATA 6.0 Gb/s port Support RAID 0, RAID 1, RAID 5, RAID 10

Cổng USB 8 x USB 2.0 port (4 port on the back panel, 4 port on mid-board) 6 x USB 3.0 port (4 port on the back panel, 2 port on mid-board)

Cổng PS/2 1 x PS/2 Mouse port 1 x PS/2 Keyboard port

Cổng Audio Realtek ALC892 8 channel High Definition Audio Support for S/PDIF Out port at back panel
