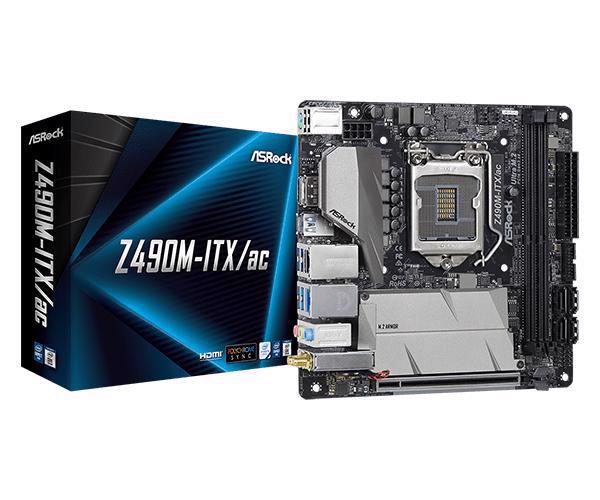

Mainboard ASROCK Z490M-ITX/ac

Sản phẩm

Bo mạch chủ

Tên Hãng

Asrock

Model

Z490M-ITX/ac

CPU hỗ trợ

Intel

Chipset

Z490

RAM hỗ trợ

2 x DDR4 DIMM Slots ( tối đa 64GB )

Khe cắm mở rộng

1 x PCI Express 3.0 x16 Slot 1 x Vertical M.2 Socket (Key E)

Ổ cứng hỗ trợ

4 x SATA3 6.0 Gb/s Connectors 1 x Ultra M.2 Socket (M2_1) 1 x Ultra M.2 Socket (M2_2)

Cổng kết nối (Internal)

1 x RGB LED Header 1 x Addressable LED Header 1 x CPU Fan Connector (4-pin) 1 x Chassis Fan Connector (4-pin) 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Cổng kết nối (Back Panel)

2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen1 Type-A Port (Supports ESD Protection) 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless

1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE

Kích cỡ

Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
