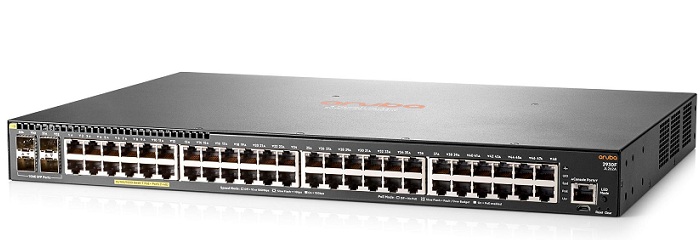

HP 2930F 48G PoE+ 4SFP Switch JL262A

HP 2930F 48G PoE+ 4SFP Switch JL262A

• The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.

• Stacking with Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks deliver right-size network access performance.

• VLAN support and tagging support IEEE 802.1Q (4,094 VLAN IDs) and 2K VLANs simultaneously.

• Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.

• Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.

• Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.

Specifications

Model JL262A

Ports 48 RJ-45 PoE+ autosensing 10/100/1000 ports 4 SFP 1G ports

Processor Dual Core ARM® Coretex A9 @ 1016 MHz

RAM 1 GB DDR3 SDRAM

Packet buffer size 12.38 MB 4.5MB Ingress/7.875MB Egress

eMMC 4 GB

Latency 1000 Mb Latency: < 3.8 μs

Throughput 77.4 Mpps

Routing/Switching capacity 104 Gbps

MAC address size 32,768 entries

Routing table size 2000 IPv4, 1000 IPv6 in hardware, 200 OSPF, 256 Static, 10000 RIP

Management Aruba AirWave Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)

Layer 3 Routing OSPF, Static and RIP routing

Voltage 100 - 127 / 200 - 240 VAC

Maximum power rating 459W

Power over Ethernet 370W PoE+

Operating temperature 0°C to 40°C

Operating relative humidity 15% to 95%, noncondensing

Dimensions 44.25 x 30.42 x 4.39 cm

Weight 4.46kg

• Hàng chính hãng HP.
