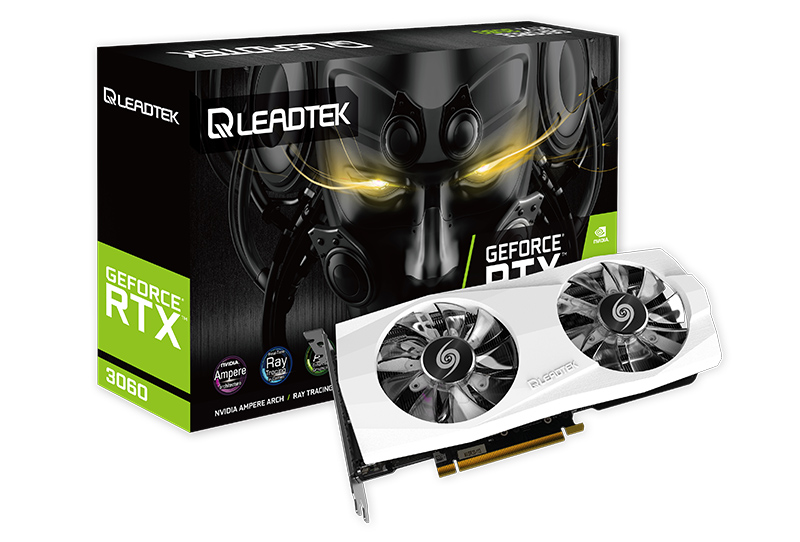

Card WinFast RTX 3060 HURRICANE WHITE EDITION

Graphics Processing Unit (GPU) NVIDIA GeForce® RTX 3060

Bus Interface PCI Express 4.0

Memory Configuration 12G GDDR6

Core Clock Base clock: 1300 MHz Boost clock: 1777 MHz

Memory Speed 15 Gbps

Output Ports 1x HDMI(2.1), 3 x DisplayPort(1.4a)

Maximum Digital Resolution 7680x4320(Up to 4k 12-bit HDR at 240Hz with DP1.4a+DSC. Up to 8k 12-bit HDR at 60Hz with DP 1.4a+DSC or HDMI2.1+DSC. With dual DP1.4a+DSC, up to 8K HDR at 120Hz.)

Memory Interface Width 192-bit

(GB/sec) Memory Bandwidth 360

CUDA Cores 3584

HDCP Support Yes

Microsoft® DirectX® 1Microsoft DirectX® 12 Ultimate

NVIDIA RTX NVLink No

OpenGL® 4.6

Maximum Power Draw(W) 170 W

Dimensions

1 253 mm (length)

2 113 mm (height)

3 40 mm (thickness)

4 46 mm (thickness) : 2.5 slots

Package Contents WinFast RTX 3060 HURRICANE WHITE EDITION Graphics Card

Quick Installation Guide

8-pin PCI-E Power Cable x 1

Requirements Microsoft Windows Windows 7, Windows 10 operation system (64 bit)

PCI-Express compliant motherboard with one dual-width x16 graphics slot

One 8-pin PCI-Express supplementary power connectors

8GB system memory (16GB or higher recommended)

1.5GB of available hard disk space

DVD ROM drive for software installation

A DP or HDMI compatible monitor

Minimum 550W Power Supply
