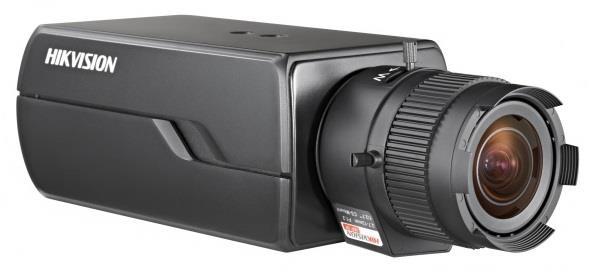

Camera IP 2.0 Megapixel HIKVISION DS-2CD6026FHWD-A
– Cảm biến hình ảnh: 1/1.8 inch progressive scan CMOS.
– Chuẩn nén hình ảnh: H.264/ MJPEG4/ MJPEG.
– Độ phân giải: 2.0 Megapixel (Full HD 1080P).
– Tốc độ khung hình: 60 hình/ giây.
– Hỗ trợ âm thanh 2 chiều.
– Tích hợp Microphone.
– 1 kênh ngõ vào Audio, 1 kênh ngõ ra Audio.
– 1 kênh ngõ vào báo động, 1 kênh ngõ ra báo động.
– Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng lên đến 128GB.
– Công nghệ hình ảnh Ultra Low-light dùng cho quan sát ở mức ánh sáng thấp.
– Chức năng lọc nhiễu kỹ thuật số 3D DNR (Dynamic Noise Reduction).
– Chức năng chống ngược sáng Digital WDR (Wide Dynamic Range).
– Chức năng Smart Code.
– Chức năng Smart VQD.
– Chức năng nhận dạng khuôn mặt thông minh (Smart Face Detection).
– Chức năng phát hiện âm thanh thông minh (Smart Audio Detection).
– Chức năng thiết lập vùng cảnh báo chống đột nhập (Intrusion Detection).
– Chức năng tùy chọn lấy lại nét tự động (Auto back focus optional).
– Nguồn điện: 12VDC.
– Chức năng cấp nguồn qua mạng PoE.
– Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…
– Phần mềm giám sát và tên miền miễn phí…
Đặc tính kỹ thuật
Model
DS-2CD6026FHWD-A
Image Sensor
1/1.8 inch Progressive Scan CMOS
Signal System
PAL/ NTSC
Min. Illumination
Color: 0.001 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON)
Shutter time
1/1 s to 1/100,000 s
Slow shutter
Support
Lens Mount
C/CS mount
Auto Iris
DC drive
Day & Night
IR cut filter with auto switch
Wide Dynamic Range
120dB
Focus
Auto Back Focus (-A model)
Video Compression
H.264/ MPEG4/ MJPEG
H.264 code profile
Baseline Profile/ Main Profile/ High Profile
Video bit rate
32Kbps~16Mbps
Audio Compression
G.711/G.722.1/G.726/MP2L2
Audio bit rate
64Kbps (G.711)/ 16Kbps (G.722.1)/ 16Kbps (G.726)/ 32-128Kbps (MP2L2)
Triple Streams
Yes
Max. Image Resolution
1920 x 1080
Frame Rate
50Hz: 50fps (1920 x 1080), 50fps (1280 x 960), 50fps (1280 x 720)
60Hz: 60fps (1920 x 1080), 60fps (1280 x 960), 60fps (1280 x 720)
Third Stream
Chưa có câu hỏi nào. Hãy là người đầu tiên đặt câu hỏi!
Independent with Main Stream and Sub Stream, up to
50Hz: 25fps (1920 x 1080); 60Hz: 30fps (1920 x 1080)
Image Enhancement
BLC/3D DNR/ROI/Defog/EIS
Image Settings
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Regional Cropping
Support
Picture Overlay
LOGO picture can be overlaid on video with 128x128 24bit bmp format
Day/Night Switch
Auto/ Schedule/ Triggered by Alarm In
Network
Network Storage
Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS)
Alarm Trigger
Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security
User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
System Compatibility
ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Audio Input
1-ch 3.5 mm audio interface, Mic in/Line in. 1 built-in Microphone
Audio Output
1-ch 3.5mm audio interface (line level, 600 Ω)
Communication Interface
1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface
Alarm
1 input, 1 output (up to 24VDC 1A or 110VAC 500mA)
Video Output
1Vp-p Composite Output (75 Ω, BNC)
On-board storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button
Yes
Audio
Environment Noise Filtering
Support
Audio I/O
Support dual audio track, stereo
Audio Sampling Rate
16kHz / 32kHz / 44.1kHz / 48kHz
Behavior Analysis
Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection
Cross a pre-defined virtual line
Intrusion Detection
Enter and loiter in a pre-defined virtual region
Region Entrance
Enter a pre-defined virtual region from the outside place
Region Exiting
Exit from a pre-defined virtual region
Unattended Baggage
Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal
Objects removed from the pre-defined region, such as the exhibits on display
Exception Detections
Scene change detection, Sudden audio increase/ decrease detection, Audio loss detection, Defocus detection
Recognition
Face detection recognition
Statistics
Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
Power Supply
24VAC± 10%, 12VDC ± 10%, PoE (802.3af)
Power Consumption
Max. 6 W (Max. 9W with IR cut filter on)
Dimensions
69.8 x 58 x 145 mm
Weight
830g
